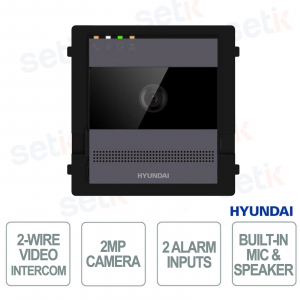

HYU-1073 | 2-WIRE MODULAR VIDEO INTERCOM SYSTEM


Hyundai Security

The Hyundai HYU-1073 2-wire modular video intercom is a professional access control solution, designed to ensure security and high performance thanks to the 2MP camera with IR and WDR that offers clear images in all conditions. The system integrates two-way audio with echo cancellation and noise reduction , ensuring clear and reliable communications. It supports up to 2000 users and 99 internal monitors , making it ideal for complex residential and business environments. Management is facilitated via mobile web configuration and a Linux operating system , offering maximum operational flexibility. The robust structure with IP65 and IK08 vandal-proof protection guarantees durability and resistance even in harsh environments.

Main specifications:

- 2MP camera with IR and WDR for advanced vision

- Two-way audio with echo cancellation and noise reduction

- Management of up to 2000 users and 99 internal monitors

- Control of 2 locks and integrated alarm inputs

- Mobile web configuration with Linux operating system

- IP65 and IK08 vandal-proof protection for outdoor use

Further details

2-wire technology:
2-wire technology that allows for quick and easy installation using existing wiring, reducing costs and time without compromising the performance of the video intercom system.
2MP Camera:
2MP camera with IR and WDR support designed to offer high definition images and optimal visibility even in difficult lighting or night conditions.
1 call button :
1 configurable call button that allows flexible access management , ideal for single homes or dedicated entrances.
Microphone and speaker:
Built-in microphone and speaker with noise suppression technology ensure clear, two-way audio communication between inside and outside.
Alarm :
2 alarm inputs that can be used to connect security devices, improving access control and perimeter protection of the system.
Lock check :
Support for the control of two locks which allows the independent management of multiple entrances , increasing the security and operational versatility of the system.

Technical data sheet

HYU-1073
Specifications
Embedded Linux operating system
4 GB of RAM
256MB of RAM
Embedded processor
One or two-button dialing (freely adjustable)
2 megapixel camera with infrared supplement
Viewing angle: 133° (H), 82° (V)
H.264 video compression
Backlight compensation with WDR
Built-in omnidirectional microphone and speaker
G.711U and G.711A audio compression
Noise suppression and echo cancellation
Adjustable volume
Capacity up to 2000 users
Connect up to 99 internal monitors
Connection with up to 16 submodules
2 RS485 ports (for connection to submodules)
Tamper tamper
2 alarm inputs (support exit request button or door contact input)
6 decimal DIP switches
Door Control: 2 (1 relay, 30V DC, 2A / 1 pulse DC, 20V, 4A pulse, 300mA holding current, 30 ohm max)
Self-adaptive 10/100 Mbps network port via 2-wire interface
Power supply: 12V DC or 48V external power supply not included
Power consumption: ≤6W
Operating temperature: -40°C ~ +60°C
Operating humidity 10% ~ 90%
IP65 protection rating
IK08 vandal-proof protection
Aluminum housing
Surface or flush mount
Dimensions: 99.5 (W) x 98.5 (H) x 35 mm
Net weight: 290 g
Gross weight: 426 g
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
