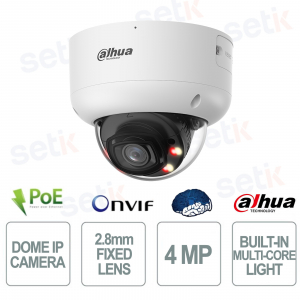

IPC-HDBW5459R1-ASE-PV-PRO 4MP WizMind 2.8mm AI Dome IP67 IK10 with WizColor and Two-Way Audio - Dahua

IPC-HDBW5459R1-ASE-PV-PRO 4MP WizMind 2.8mm AI Dome IP67 IK10 with WizColor and Two-Way Audio - Dahua

BEST PRICE -56% New

IPC-HDBW5459R1-ASE-PV-PRO - is a professional dome camera with a 2.8 mm wide-angle lens that guarantees a wide field of view up to 111°, ideal for covering large areas with a single device. Thanks to the 4MP resolution and the advanced sensor with WizColor technology, it offers color images even in low light conditions, maintaining high clarity and detail. It integrates powerful WizMind Artificial Intelligence features such as face detection, people counting and perimeter protection, ensuring advanced video analytics and false alarm reduction. The smart dual light system with IR up to 60 m and warm light up to 50 m improves night visibility, while H.265+ compression optimizes bandwidth and storage. Designed for outdoor environments, it has IP67 and IK10 protection and supports two-way audio for real-time communication. Dahua

Technical Data Sheet

Reference: IPC-HDBW5459R1-ASE-PV-PRO

Brand: Dahua

EAN: 6923172571922

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


IPC-HDBW5459R1-ASE-PV-PRO | 4MP IP CAMERA WITH 2.8mm FIXED LENS - WIZCOLOR - NETWORK CAMERA


Dahua

The Dahua IPC-HDBW5459R1-ASE-PV-PRO is a professional dome camera designed to offer high performance thanks to its 4MP resolution and advanced sensor with WizColor technology, capable of guaranteeing color images even in low light conditions. Equipped with WizMind Artificial Intelligence , it integrates advanced functions such as face detection, people counting and perimeter protection, improving accuracy and reducing false alarms. The smart dual light lighting system with IR up to 60 m and warm light up to 50 m ensures optimal visibility even at night. H.265+ compression optimizes bandwidth and storage, while the robust structure with IP67 and IK10 protection makes it ideal for outdoor environments and high-risk contexts. It also supports two-way audio for real-time communication and complete management via professional systems.

Main specifications:

- 4MP resolution with advanced sensor for sharp and detailed images

- WizColor technology for color vision even at night

- AI WizMind with face detection, people counting and perimeter protection

- Smart Dual Light (IR + warm light) up to 60m for advanced night vision

- H.265+ compression for bandwidth and storage optimization

- IP67 and IK10 protection resistant to water, dust and vandalism

- Two-way audio with built-in microphones and speakers

- MicroSD support up to 1TB and professional systems integration

Further details

Optics :
2.8mm wide-angle fixed lens designed to offer a field of view of up to 111° , ideal for covering large areas with high precision and reduction of blind spots.

Resolution:
4MP resolution (2688×1520) with 1/1.8" high-sensitivity CMOS sensor, capable of guaranteeing extremely detailed images even in low light conditions.
Xinghan Large-Scale AI Models-Vision :
Xinghan Large-Scale AI Models-Vision based on advanced AI models and transformer architecture , optimizes object and scene recognition by improving accuracy and real-time performance.
WizColor Technology:
WizColor Technology combines AI-ISP, high-sensitivity sensor and large aperture , enabling color images even at night with realistic details and reduced motion blur.
AcuPick:
Intelligent AcuPick for fast and precise video search , leveraging front-end and back-end AI to efficiently identify and track subjects.
Artificial Intelligence:
WizMind Artificial Intelligence with advanced features such as face detection, people counting, perimeter protection and video metadata , for professional video analysis and false alarm reduction.
Microphone:
Built-in dual microphone and speaker for two-way audio , enabling real-time communication and advanced remote management.
Alarm:
Active alarm system with customizable light and sound signaling , ideal for immediate deterrence and proactive security.
Network camera:
Professional IP network camera with support for advanced protocols (ONVIF, RTSP, HTTPS) for complete integration into advanced video surveillance systems.
Advanced features:
Advanced video features such as WDR 140dB, 3D NR, ROI, Smart Dual Light and AI coding , to adapt to any operating scenario.
Doors:
Comprehensive ports and professional interfaces including RJ-45, RS-485, audio and alarm inputs/outputs , for maximum installation and integration flexibility.

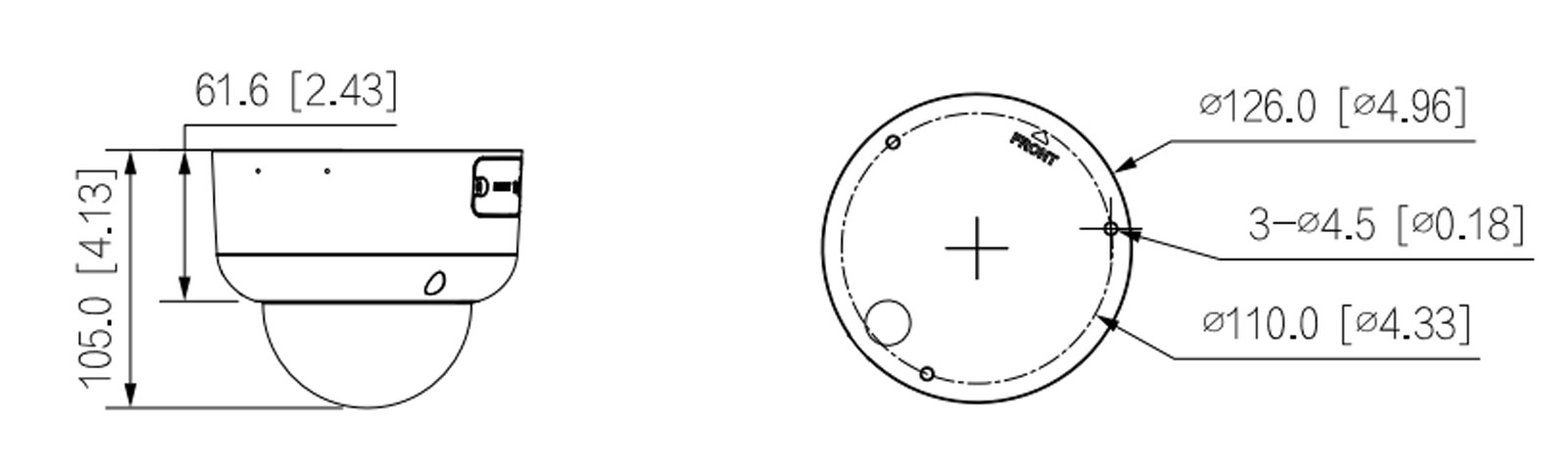

IPC-HDBW5459R1-ASE-PV-PRO dimensions

Technical data sheet

MODEL IPC-HDBW5459R1-ASE-PV-PRO
Room
Image Sensor 1/1.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.0001 lux@F1.8 (Color, 30 IRE)
0.0001 lux@F1.8 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 60 m (196.85 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 4 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°
Lens
Lens Type Fixed-focal
Mount Type M16
Focal Length 2.8 mm
Max. Openings F1.0
Field of View H: 111°; V: 60°; D: 135°
Iris Control Fixed
Close Focus Distance 2 m (6.56 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets.
Face Detection Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map Yes
Video Metadata Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle.
Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec AI H.265; AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+.
Video Frame Rate Main stream: 2688 × 1520@(1–25/30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
Fourth stream: 1280 × 720@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 4 stream
Resolution 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 140 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 mosaics or 8 color blocks
LDC Yes
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Network RJ-45 (10/100 Enhancement Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 1TB); NAS
Browser IE: IE 11 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later
Management Software DSS; DMSS; DoLynk Care
Mobile Client Android; iOS
Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Function
Light Warning Warm light warning
Flash/Solid on duration: 5 s–30 s
Flash frequency: high, medium, low
Sound Warning Offers 11 sound alarms and supports importing 10 custom sound alarms.
Sound: 0–100
Play times can be set from 1 to 10.
Certification
Sound Warning CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
RS-485 1 (baud rate range: 1200 bps–115200 bps)
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output 1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC
Power Output 12 VDC power output, max. current 165 mA, peak current 700 mA
Power
Power Supply 12 VDC (±30%); PoE+ (802.3at); ePoE
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 3.5W (12VDC); 5W (PoE);
Max. 14.8W (12VDC); 17.5 W (PoE) (IR on + WDR + intelligence on + siren and light active deterrence)
ePoE Yes
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67; IK10
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Structure
Casing Material Metal
Product Dimensions 105.0 mm × Φ126.0 mm (4.13" × Φ4.96")
Net Weight 0.73 kg (1.61 lb)
Gross Weight 0.94 kg (2.07 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
