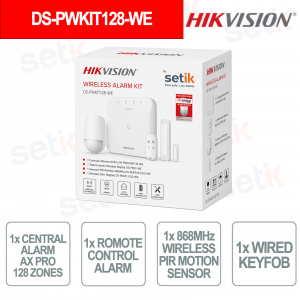

DS-PWKIT128-WE Professional tri-x Wireless 868Mhz Hikvision AXPro 128 Zone Home Alarm System with Wireless Communication:
- 1 Hikvision AXPro LAN Wi-Fi GPRS 128-zone Alarm Control Panel | DS-PWA128P-M-WE
- 1 Wireless Alarm Keyfob Remote Control | DS-PRE1-WE
- 1 Wireless PIR Motion Sensor 868Mhz | DS-PDP15P-EG2-WE
- 1 Wireless Slim Magnet Detector 1600m 868Mhz | DS-PDMC-EG2-WE
FREE HIKVISION ADHESIVE SIGN!
DS-PWKIT128-WE | HIKVISION AXPRO HUB GPRS 868MHZ WIRELESS CENTRAL ALARM KIT
FREE HIKVISION ADHESIVE SIGN!
The Hikvision DS-PWKIT128-WE AX PRO 868MHz wireless alarm kit represents a complete and professional solution for the security of residential and commercial environments, integrating control panel, sensors and accessories in a single intelligent system. Thanks to two-way wireless communication at 868 MHz with 128-bit AES encryption , it guarantees high security and reliability in data transmission. It supports up to 128 zones and 32 areas , with advanced management via apps and dedicated platforms, as well as remote control and video verification . Equipped with Wi-Fi, wired network and 3/4G connectivity , it offers maximum flexibility in installation and management, while the integrated battery of up to 12 hours ensures operational continuity even in the event of a blackout.
Main specifications:
- Complete AX PRO 868 MHz kit: includes control panel, PIR detector, magnetic contact and remote control for immediate protection
- 128 zones and 32 areas: advanced and scalable management for professional security systems
- Two-way wireless communication with AES 128 bit: secure and reliable data transmission
- Multiple Wi-Fi, LAN and 3/4G connectivity: maximum flexibility of installation and remote control
- Video verification and management via app: total control via Hik-Connect and dedicated platforms
- Built-in battery up to 12 hours: operational continuity even in the event of a power failure
Further details
- Alarm center
- TCP/IP, Wi-Fi and 3/4G connectivity
- Tri-X/Cam-X wireless protocol with AES-128
- Support up to 128 wireless zones
- Push notifications, calls and videos
- Built-in battery up to 12 hours
- Multi-level user support for up to 48 users
- Status LED and intelligent event management
- Volumetric lens; detection range 15m; angle 85.9°
- Digital temperature compensation
- Passive infrared sensor
- Pet immune up to 30kg
- Transmission range up to 1600M
- 868MHz FM two-way radio technology
- Communication frequency: 868MHz
- Two-way wireless technology
- Operation up to 1600m (in open space)
- Signal Strength Indicator (SSI)
- Tamper protection
- Slim design
- Plastic cover
- Wired Keyfob
- Two-way wireless communication frequency 868Mhz
- Range up to 900m in open field without obstacles
- Battery operated
Technical data sheet
| Model | DS-PWKIT128-WE |
| Software features | |
| Area | 32 |
| Zones | 128 (up to 48 PIRCAMs) |
| Onboard video clips | 4 |
| Installer | 1 |
| User | 46 |
| Admin | 1 |
| Voice Prompt | Supported |
| Built-in loudspeaker | Supported |
| Tag reader built in | Supported |
| Memory Log stored | 5000 |
| Programming tools | Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud |
| Firmware upgrade | APP/Web portal |
| Arm modes | Away/Stay |
| Automatic Arm/Disarm Timers | Supported |
| Forced Arming with Open Zones | Supported |
| Diagnostics via the APP or Web | Supported |
| ARC protocol | SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control |
| User APP for operating | Supported |
| Installer APP for programming | Supported |
| Web server for maintenance (offline configuration) | Supported |
| Hardware features | |
| RS232 output | Supported |
| SIM slot | Dual |
| RF transmission | |
| Two-way Wireless Communication | Support |
| RF Frequency | 868Mhz |
| Wireless Security | Frequency Hoping 128 AES Encryption |
| 3/4G on board | Supported |
| Display | |
| LEDs Status | Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power |
| Electrical characteristics | |
| Power supply | Built-in power supply |
| Battery type | Built-in on-board battery Li |
| Battery life span | Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures) |
| Wireless transmission | |
| Wired network | Supported |
| Standard Wi-Fi | Supported |
| General | |
| Operating Temperature | –10 °C to +55 °C |
| Shell material | Plastic |
| Dimensions | 169 x 169 x 38.9 mm (L × W × H) |
| Weight | 557.5 g (19.7 oz) |
| Color | White |
| Device management | |
| Keyfob | 48 |
| Wireless sounder | 6 |
| Keypad | 8 (Including Tag reader) |
| Wireless Repeater | 4 |
| Multi Transmitter | 6 |
| PIR Cam | Supported |
