Additional Module / expansion for modular outdoor station VTO2000A-C. 3 Mechanical Buttons for integrated different residences. Dimension L153xH145xP77. Quality Product. Dahua. VTO2000A-B
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
ADDITIONAL BUTTON PANEL FOR OUTDOOR STATION VTO2000A-C - DAHUA
DESCRIPTION:
The modular outdoor station VTO2000A-C by Dahua, is one of the best on the market

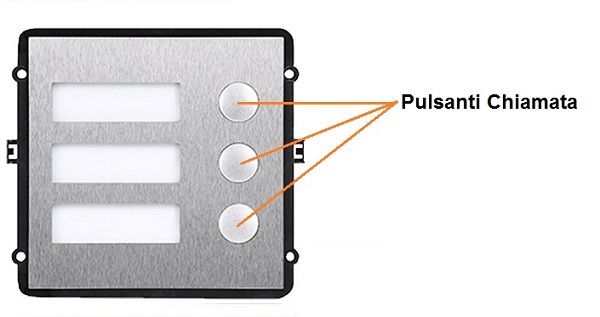

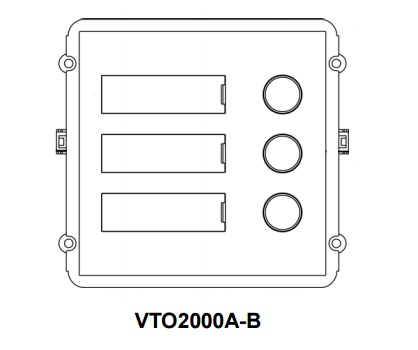

Thanks to the additional moduleVTO2000A-B it's possible to add 3 call buttons.
The modular outdoor VTO2000A-C can be integrated with other 5 modules VTO2000A-B to obtain 16 mechianical buttons connected to different residence.
Product Details:
|
Technical Features
Model |
VTO2000A-B |
VTO2000A-R |
VTO2000A-K |
|
Proximity Sensor |
Not support |
Support |
Not support |
|
General |
Consumption |
Standby ?0.1 working ?0.45W |
Standby?0.3W working?0.3W |
Standby?0.1W working?0.45W |
Working Temperature |
?40??+70? |
|
||
Relative Humidity |
10%?95%RH |
|
||
Dimension |
110mm×120mm×24.9mm(L×W×H) |
110mm×120mm×29m m (L×W×H) |
||
Weight |
0.27kg |
0.32kg |
Model |
VTO2000A-C |
|
System |
Main Process |
Embedded micro controller |
OS |
Embedded Linux os |
|
Video |
Video Compression |
H.264 |
Input/Sensor |
Megapixel CMOS HD camera |
|
Night Vision |
Support |
|
Audio |
Input |
Omnidirectional Mic |
Output |
Built-in speaker |
|
Talk |
Support bidirectional talk |
|
Operation Mode |
Input |
Single key input |
Door Lock Status Check |
Support (optional) |
|
Structure and |
Material |
Stainless steal |
Installation |
Installation |
Direct, embedded |
Protection |
Protection Level |
IK07 |
Waterproof |
IP54 |
|
Vandal-proof |
Support |
|
Network |
Ethernet |
10M/100Mbps self-adaptive |
Network Protocol |
TCP/IP |
|
Waterproof |
IP54 |
|
Vandal-proof |
Support |
|
General |
Power |
DC 12V?24V±10% |
Consumption |
Standby?1W; working?10W |
|
Working Temperature |
?40??+70? |
|
Relative Humidity |
10%?95%RH |
|
Dimension (L×W×H) |
110.7mm×118.1mm×42.3mm (lends cover included) |
|
Weight |
0.36kg |
Further Details
Download
