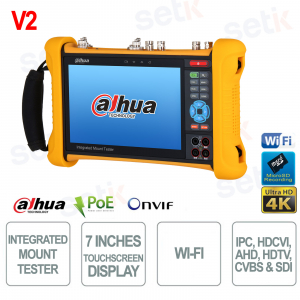

PFM906-E-V2 | 7" TOUCHSCREEN ASSEMBLY TESTER

Dahua

Dahua PFM906-E V2 is a professional multifunction tester designed for advanced installation and maintenance of video surveillance systems. Equipped with Android system, 7" Full HD touchscreen and support for analog and digital signals, it allows network tests, electrical measurements and video diagnostics, all in a single compact, robust and online upgradeable instrument

Main specifications:

- 7” Full HD 1920×1080 IPS display with touch control and physical buttons

- Compatibility with IPC, HDCVI, AHD, HDTVI, CVBS, SDI and HDMI signals up to 4K

- TDR cable testing, tracing, short/open circuit check and report generation

- Built-in multimeter for voltage, current, resistance, capacitance, frequency

- ONVIF function, 12VDC 2A PoE power supply, IP, band and PING test

- Optical power meter and break identification on optical fiber

- 37Wh battery for up to 8 hours of battery life, ESD and overvoltage protections

- Supports online updates and data saving on micro SD up to 32GB

Further details

Display Screen:
The device is equipped with a 7-inch IPS capacitive touchscreen with Full HD 1920 × 1080 pixels resolution. This panel guarantees a wide full-angle vision (full-angle retina) , ideal for viewing clear images from any position, even in bright environments. Both the touchscreen and the 14-key physical keyboard can be used, making interaction comfortable in any operating situation.
Resolution :
The tester supports viewing and configuring video streams from cameras with resolutions ranging from 1 MP up to 12 MP , including intermediate resolutions such as 2 MP, 4 MP, 8 MP. It also supports 4K video up to 30 fps with analog protocols (HDCVI, HDTVI, AHD). This makes it suitable for both modern high-resolution systems and legacy systems.
Analog Video Test :
Compatible with all major analog formats: HDCVI, HDTVI, AHD, CVBS (NTSC and PAL) . It is possible to test video signals up to 4K at 30 fps for HDCVI, and up to 4 MP for HDTVI and AHD. It includes advanced controls such as PTZ and OSD menus , as well as snapshot, zoom and recording functions. It also features a PAL/NTSC video signal generator , useful for simulating video sources during installation or maintenance.
Wireless:
The device integrates the Wi-Fi hotspot function to connect to wireless networks without the need for cables. This allows access to IP interfaces of cameras or diagnostic tools directly from the tester, facilitating work in mobile situations or without immediate wired connectivity.
Network:
It supports IEEE 802.11 a/b/g/n/ac Wi-Fi standards, operating on the 2.4 GHz and 5 GHz bands, ensuring compatibility with modern high-performance networks. Thanks to the IP scan, PING test, band test, port check and link scan functions, the PFM906-E V2 is a complete tool for network analysis. In addition, it integrates RJ45 gigabit ports, with PoE and PSE support, ideal for powering and configuring IP cameras even in the absence of external PoE switches.

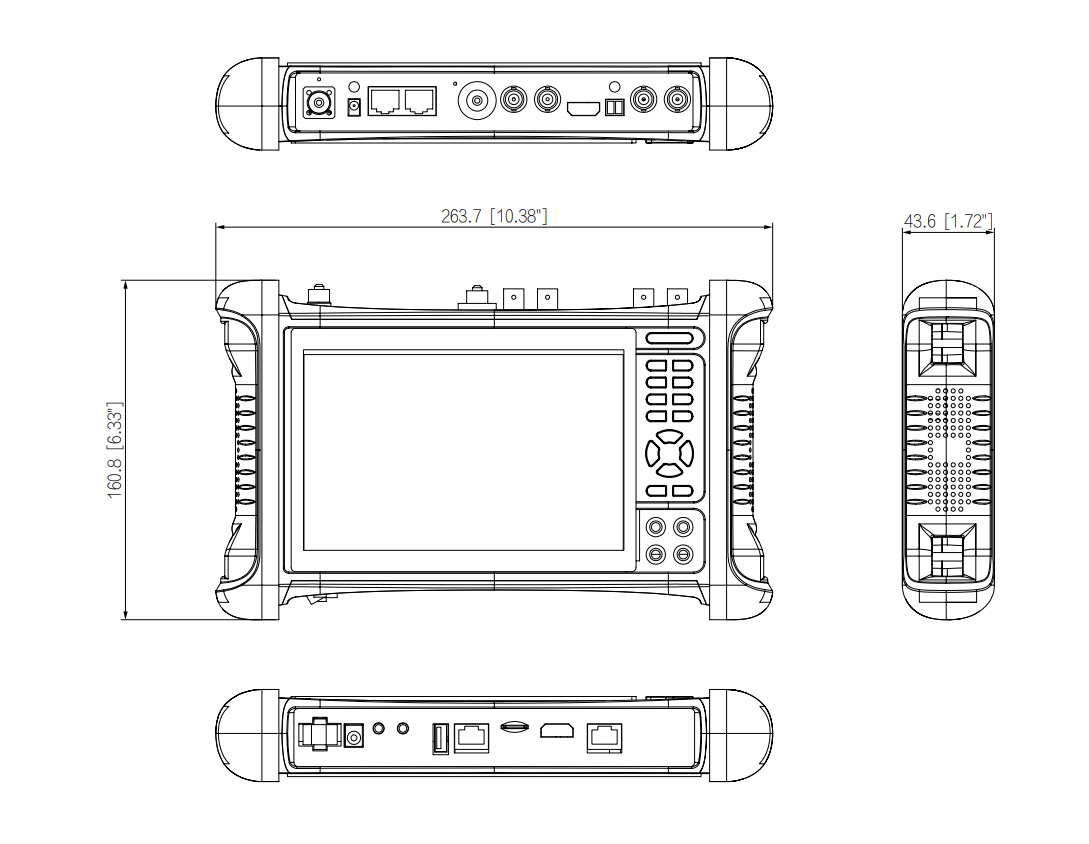

PFM906-E-V2 dimensions

Technical data sheet

MODEL PFM906-E-V2
Room
Operating System Android
Language 13 languages including Chinese and English
Operation mode Physical buttons and touch screen
Auto Standby/Power Off Supports setting automatic standby and automatic shutdown
Keyboard Sound On/Off
Display Screen 7-in 1920×1080p HD full-angle retina capacitive IPS touchscreen.
Button Keypad: 14 keys;
Others: Power and on–off button
LED 1 × 35lm 5mm LED
Update Supports online and local updates
IPC Test
Room Access ONVIF and Dahua private protocol
Resolution 1 MP; 1.3 MP; 2 MP; 3 MP; 4 MP; 5 MP; 6 MP; 8 MP; 12 MP
Initialization Yes
Image Live view, snapshot and recording, zoom, and H.264/H.265 decoding
Function Control Modify the IPC resolution, IP address and account password. Control IPC to restore factory defaults
Analog Video Test
Video Format HDCVI; HDTVI; AHD; CVBS (NTSC, PAL)
Resolution HDCVI: 2 MP@25/30 fps, 4 MP@25/30 fps, 5 MP@20 fps, 6 MP@20 fps, 4K@12.5/15/25/30 fps
HDTVI: 2 MP@25/30 fps, 4 MP@25/30 fps
AHD: 2MP@25fps/30fps, 4MP@25fps/30fps
CVBS: NTSC, PAL
Function Control OSD menu; PTZ control
Image Live view, snapshot and recording, zoom
Video Signal Generator PAL; NTSC video test signal
SDI Test
Resolution 720p@60fps; 1080p@60fps; 1080i@60fps
RS-485 Control
Communication protocol More than 30 protocols including Pelco–D/P, Samsung, Panasonic, Lilin, and Yaan
Baud Rate 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 115200 bps
Wireless
Wi-Fi Hotspot Yes
Network
Wi-Fi Standard IEEE 802.11a/b/g/n/ac
Frequency Range 2.4–2.4835GHz and 5.15–5.85GHz
Transmitter Power (EIRP) CE EIRP:
≤20 dBm@2400 MHz–2483.5 MHz; ≤23 dBm@5150 MHz–5250 MHz;
≤20 dBm@5250 MHz–5350 MHz; ≤27 dBm@5470 MHz–5725 MHz;
≤14 dBm@5725 MHz–5850 MHz;
FCC output power:
≤30 dBm@2400 MHz–2483.5 MHz; ≤24 dBm@5150 MHz–5250 MHz:
≤24 dBm@5250 MHz–5350 MHz:≤24 dBm@5470 MHz–5725 MHz;
≤30dBm@5725MHz–5850MHz
Cable Test
Network Cable Test Tests the network cable pair length, attenuation, latency skew, reflectivity, impedance, the network cable sequence, short circuits, the opening and closing of the network cables, and other parameters, and then generates reports with the information from the tests.
Break and Short Circuit Test Measures the location of a disconnection or the short–circuit of BNC cables, network cables, telephone cables, and more.
Cable Tracing Yes
Others
HDMI Test 1-ch HDMI video input, max. 4K@30fps;
1-channel HDMI video output
Sound Test 1-ch HDMI video input;
1-channel HDMI video output
Power Supply for Camera 12VDC 2A
Network Test Features IP address scanning, PING test, bandwidth test, port flashing, link scan and other functions.
Voltage Test Displays the size of PoE/PSE voltage and line connection
Visible Red Light Source Emits a visible red light to detect various types of faults in the optical fiber line such as breaks, cracks and bends.
Protocol Code Acquisition Built–in serial port tool, can receive and display RS485 protocol code data sent by control device, and can also send hexadecimal codes.
UTC Yes
DMM
DC Voltage Limit: 60 mV, 600 mV, 6 V, 60 V or 600 V
Reading range: –6,000 to +6,000
Min Resolution: 0.01mV
Accuracy: For 0.01 mV to 600 V, the accuracy is ± (0.6%+4). For 600 V to 1,000 V, the accuracy is ± (0.8%+10).
AC Voltage Limit: 60 mV, 600 mV, 6 V, 60 V or 600 V
Reading range: –6,000 to +6,000
Min Resolution: 0.01mV
Accuracy: For 0.01 mV to 600 V, the accuracy is ± (1.2%+4). For 600 V to 750 V, the accuracy is ± (1.2%+10).
DC Current Limit: 60 mA, 600 mA or 10 A
Reading range: –6,000 to +6,000
Min Resolution: 10μA
Accuracy: ± (1.2%+10)
AC Current Limit: 60 mA, 600 mA or 10 A
Reading range: –6,000 to +6,000
Min Resolution: 10 μA
Accuracy: ± (1.2%+10)
Resistance Test Limit: 600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ or 60 MΩ
Reading range: 0–6,000
Min Resolution: 0.1Ω
Accuracy: For 0.1 Ω to 6 MΩ, the accuracy is ± (0.8%+10). For 6 MΩ to 60 MΩ, the accuracy is ± (2.5%+4).
Capacitance Test Limit: 6 nF, 60 nF, 600 nF, 6 μF, 60 μF, 600 μF, 6 mF or 60 mF
Reading range: 0–6,000
Min Resolution: 1pF
Accuracy: For 1 nF to 6,000 μF, the accuracy is ± (3.5%+20). For 6,000 μF to 60,000 μF, the accuracy is ± (5%+4).
Diode Voltage Drop Limit: 3V
Reading range: 0–3,000
Min Resolution: 1mV
Accuracy: ± (1.2%+20)
Continuity Test Limit: 50Ω
Reading range: 0–500
Min Resolution: 0.1Ω
Accuracy: ± (1.2%+20)
Frequency Test Limit: 6 Hz, 60 Hz, 600 Hz, 6 kHz, 60 kHz, 600 kHz or 6 MHz
Reading range: 0–6,000
Min Resolution: 0.001Hz
Accuracy: For 1 Hz to 6 MHz, the accuracy is ± (0.1%+3).
Neutral and Live Wire Identification Yes
Port
Power 1 × charging port, 12 VDC 2 A
1 × power output port, 12 VDC 2 A
Audio Port 1 × audio input port;
1 × audio output port
USB 1 × type–A port
Network Port 2 × RJ45 10/100/1,000 Mbps network ports (one port supports PoE and the other supports PSE IN)
1 × UTP/SCAN port
1 × TDR port
SD Card Slot 1 × micro SD card slot, and it supports memory expansion up to 32 GB, and FAT32 and NTFS formats.
HDMI 1 × HDMI input port;
1 × HDMI output port
RS-485 1
VLS 1
OPM 1
Multimeter 4
BNC 4
Power Supply
Power Supply 12VDC 2A
Battery Replaceable polymer lithium battery with a capacity of 37 Wh, and a working time of about 8 hours
Protection
Surge Protection Grade Common mode: ±2 kV;
Differential mode: ±1kV
Statics Protection Air discharge: 8 kV;
Contact discharge: 6kV
Structure
Appearance Color Yellow
Product Dimensions 270.0 mm × 160.0 mm × 46.0 mm (10.63" × 6.30" × 1.81") (L × W × H)
Packaging Dimensions 313.0 mm × 286.0 mm × 96.0 mm (12.32" × 11.26" × 3.78") (L × W × H)
Net Weight 0.95kg (2.09lb)
Gross Weight 2.1 kg (4.63 lb)
Environment
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 30%–90% (RH)
Storage Temperature –20 °C to +70 °C (–4 °F to +158 °F)
Storage Humidity 30%–90% (RH)
Certifications
Certifications CE; FCC
