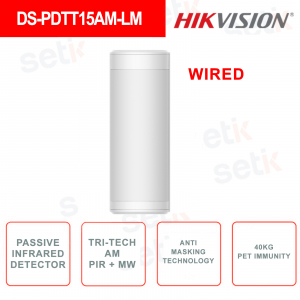

DS-PDTT15AM-LM - HIKVISION TRI-TECH AM WIRED ANTIMASKING PET IMMUNE DETECTOR

K-BAND | MAXIMIZED PROTECTION
The DS-PDTT15AM-LM is one of Hikvision's new k-band sensors. This outdoor wired tri-tech triple PIR + MW technology detector with anti-masking is equipped with a 24GHz K-Band microwave, coverage up to 15m and immunity to pets [up to 40KG].
Curious to learn more about the topic? Read the article on our blog! |
- Outdoor passive infrared wired detector Documentation: Brochures |
| DS-PDTT15AM-LM | |
| Detection Performance | |
| Detection Method | Passive Infrared,Microwave |
| Detection Range | 15m |
| Detection Angle | 90° @ 180° adjustable |
| Detection Zones | ninety two |
| Detectable Speed | 0.3~2m/s |
| Sensitivity | Auto,Low |
| White Light Filter | 10000lux |
| Microwave Frequency | 24GHz(24.15~24.25GHz) |
| Pet Immunity | 40Kg |
| Digital Temperature Compensation | Support |
| Anti-masking | Support |
| Adaptable Coverage | Support Pattern mask included |
| Features | |
| Digital Processing | Tri-Signal Logic |
| Sealed Optics | Support |
| Tamper Protection | Front, Rear |
| Anti-Sway Analytics | Support |
| Interface | |
| Alarm Output | Normally Closed |
| LED Indicator | Green(Top PIR), Red(Microwave), Orange(Bottom PIR)Green+Orange(Mask), Blue(Alarm) |
| Transmission | |
| Transmission Method | Wired |
| Electrical Characteristics | |
| Power Consumption | 30mA(Standard) 220mA Max (With lighting on) |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| General | |
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperatures | -25 °C to 60 °C (-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 75mm × 202mm × 73mm |
| Weight | 350g |
| Mounting Height | 0.8 to 1.2m |
| Mounting Method | Wall |
| Application Scenario | Outdoors |
