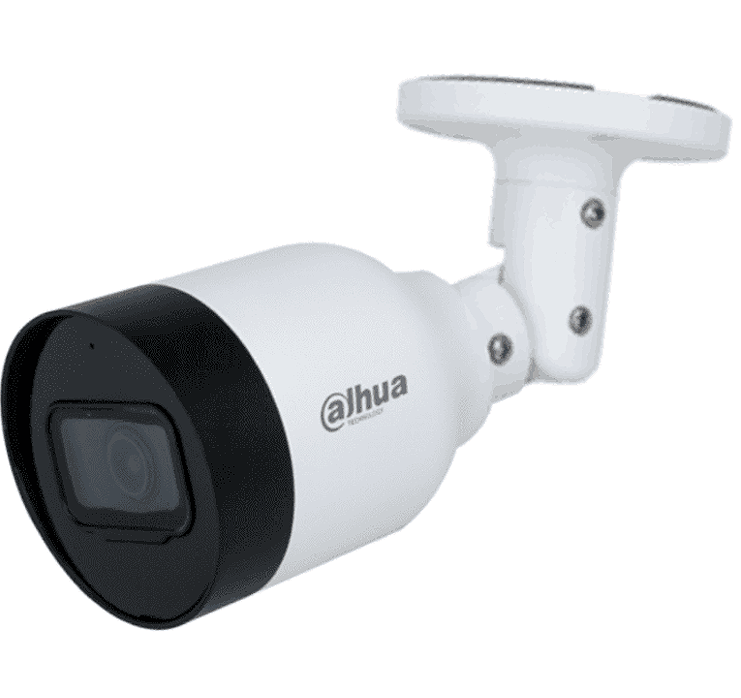

Dahua IP Camera ONVIF® PoE 8MP 3.6mm Bullet IR 30M Microphone

Dahua IP Camera ONVIF® PoE 8MP 3.6mm Bullet IR 30M Microphone
FIND INSTALLER

IN PROMOTION -63%

IPC-HFW1830S-S6 Dahua Outdoor ONVIF PoE bullet IP camera 8Megapixel 4K ULTRA-HD, 3.6mm lens, 1/2.7" CMOS sensor. Compression up to H.265+, 30MT IR illuminator, ROI, DWDR, 3D NR, HLC, BLC, Motion Detection, Built-in Microphone, IP67 protection suitable for outdoor environments. 162.1 mm × Φ70.1 mm (6.38" × Φ2.76")

Reference: IPC-HFW1830S-S6

Brand: Dahua

EAN: 6923172506085

€112.40

€303.78 -63%
taxes included
Tax included
  Available
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


IPC-HFW1830S-S6 DAHUA | ONVIF POE BULLET IP CAMERA 8MP 8MEGAPIXEL 3.6MM - BUILT-IN MICROPHONE - IR 30 METERS

Made by Setik Dahua ONVIF PoE IP Bullet Camera - Entry Level Series
8Megapixel 4K ULTRA-HD Resolution, 3.6mm Fixed Lens, H.265+ Video Compression, 1/2.7" Sensor
30MT Smart IR LED Illuminator - Built-in Microphone - ROI, DWDR, 3D NR, HLC, BLC, Motion Detection
IP67 protection - 12V power supply not included - 24 month warranty - 162.1 mm × Φ70.1 mm (6.38" × Φ2.76")

Product details

Telecamera IP ONVIF® POE da esterno Dahua 8MP
- Dahua ONVIF® PoE outdoor IP camera - Entry Level series
- 8Megapixel 4K ULTRA-HD resolution
- 3.6mm fixed lens
- 1/2.7" CMOS image sensor
- Video Compression up to H.265+
- Day/Night (ICR), ROI, DWDR, 3D NR, HLC, BLC
- 30 MT Smart IR LED illuminator
- Incorporates microphone
- Suitable for outdoor and indoor environments
- IP67 protection (Dust / Immersion)
- 12V DC power supply not included
- PoE protocol
- Dimensions 162.1 mm × Φ70.1 mm (6.38" × Φ2.76")
- 24 month warranty

Data sheet

Model IPC-HFW1830S-S6
Room
Image Sensor 1/2.7" CMOS
Effective Pixels 3840(H)×2160(V)
ROM 16MB
RAM 256MB
Scanning System Progressives
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination

0.04 Lux@F2.0 (Color, 30 IRE)
0.004 Lux@F2.0 (B/W, 30 IRE)
0 Lux (Illuminator on)

S/N Ratio > 56 dB
IR Distance 30 m (98.43 ft) (IR)
IR On/Off Control Auto/Manual
IR LEDs 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed focus
Lens Mount M12
Focal Length 3.6mm
Max Openings F2.0
Angle Of View Horizontal: 87°; Vertical: 47°; Diagonal: 104°
Iris control Fixed
Close Focus Distance 1.9 m (6.23 ft)
Video
Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codecs Smart H.265+; Smart H.264+
Frame Rate

Main stream: 3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps)
Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control CBR/VBR
Bit Rate

H.264: 32kbps–8192kbps
H.265: 12kbps–8192kbps

Day/Night Auto(ICR)/Color/B/W
BLC Mode BLC/HLC/ DWDR
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region Of interest Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Compression G.711a; G.711Mu; G.726; PCM
Alarm
Alarm event Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception
Network
Ethernet

RJ-45 (10/100 Base-T

SDK and API

Yes

Cyber Security

Video encryption; configuration encryption; Digests; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast

Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestones
User/Host 6 (Total bandwidth: 48M)
Storage FTP
Web Viewer IE, Chrome, Firefox
Management Software Smart PSS; DSS; DMSS
Smartphones IOS, Android
Certifications
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Electrical
Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic: 2.4W (12V DC); 2.9W (PoE) Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 4.4W (12V DC); 5.2W (PoE)
Environmental
Operating Conditions –40°C to +60°C (–40°F to +140°F)
Operating Humidity ≤95%
Storage Conditions –40°C to +60°C (–40°F to +140°F)
Ingress Protection IP67
Construction
Casing Metal
Dimensions 162.1 mm × Φ70.1 mm (6.38" × Φ2.76")
Net Weight 0.32 kg (0.71 lb)
Gross Weight 0.45 kg (0.99 lb)

Further details

Telecamera IP ONVIF® POE da esterno Dahua 8MP


Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems.
PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
Questa telecamera ha una risoluzione 8Mpx 3480x2160

This camera has a resolution of 8Megapixel :
1/2.7” 8Megapixel progressive scan CMOS image sensor

Questo DVR presenta ingressi / uscite audio This camera features a built-in microphone

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Ottica fissa This camera has a 3.6mm fixed lens
Illuminatore IR fino a 20mt

Infrared illuminator with approximate maximum range of 30m

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object framed.

Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
Ultra Smart Funzione ROI
Allows you to adapt the lens to Night/Day vision

ICR The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations


Click to enlarge

AGC_Camera The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
DNR

3D-NR is the most advanced version of NOISE REDUCTION management. It allows still images both in the presence of low light and movement. The currently most powerful solution for obtaining maximum results in the presence of low light.

12VDC_Supply 12VDC power supply NOT included
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Downloads

Download the English brochure

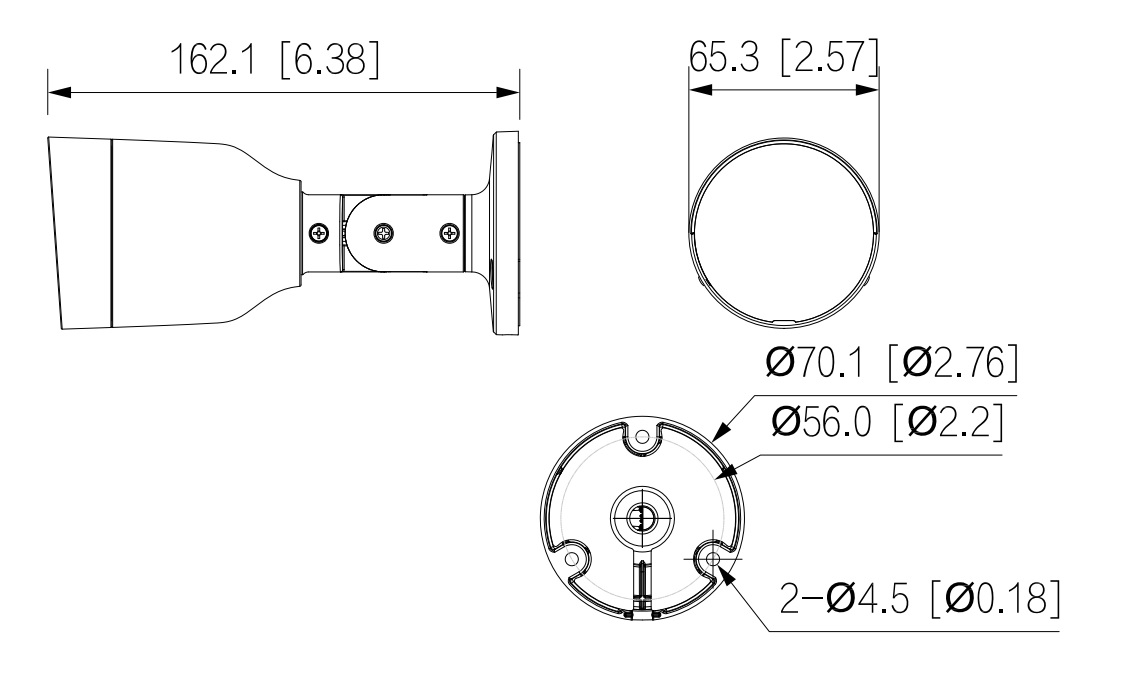

Schema dimensioni IPC-HFW1830S-S6
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
