Anti-Jamming Filter for Coaxial Cable - Setik

Anti-Jamming Filter for Coaxial Cable - Setik

Anti-Jamming Filter by Setik, useful to prevent signal distortion on coaxial cable. FILTERPRO

Reference: FILTERPRO

Brand: Setik

EAN: 8058258763323


€14.03 -40%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
discover the available quantity


Prodotto marca Setik Anti-jamming Filter - Setik

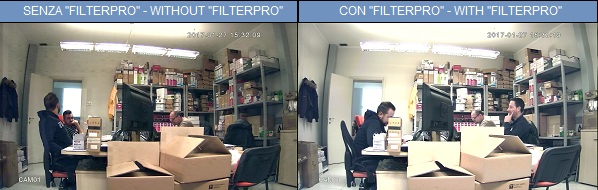

Ideal to prevent signal interference on coaxial cable
Improve coaxial cable quality

Product Details

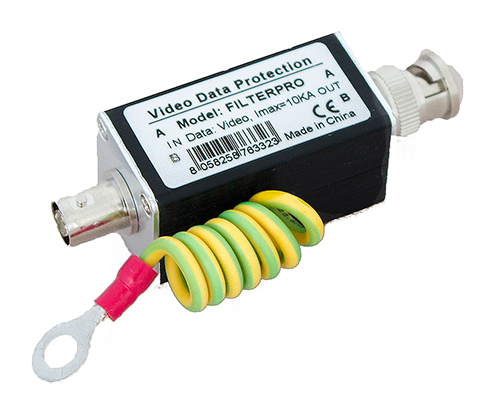

Passive Filter to reduce signal interference of coaxial cable
  • Anti-Jamming Filter - Setik
  • Ideal to prevent interference and distortion on coaxial cable
  • BNC Male/Femal with grounding
  • Passive Filter - Power supplyer not neccesary
  • Protection TVS
  • Product not covered by warranty

Technical Features

Nominal Voltage 5.5V
Max continual voltage U 6.8V
Limit voltage 8.8V
Nominal discharge current (8/20us) i n 5kA
Maximum Flow Capacity (8/20us) i n 10kA
Response time T <1ns
Transfer rate V <10Mbps
Insertion loss A e <0.5dB
Impedance Z 75Ω
Connector Type BNC
Dimension (mm) 65*25*25 / 85*25*25
Notes (1-channel)

Further Details

Product not coverd by Warranty The components which, by their nature or due to normal use, stress or decay, require periodic maintenance or replacement (i.e. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electric stress) are specifically excluded from the Warranty.
